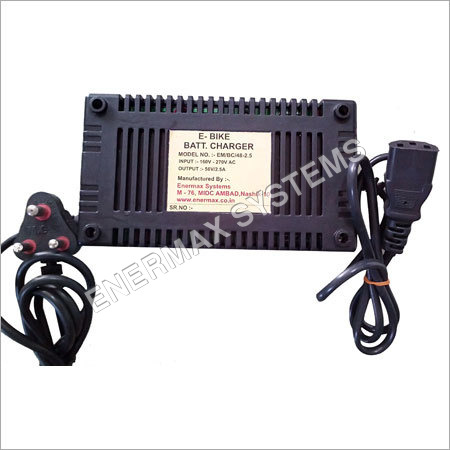

E - Bike Battery Charger

E - Bike Battery Charger
E - Bike Battery Charger
Product Code : 04
Product Description

Due to our rigorous quality check management system, we are able to manufacture, export and supply E-Bike Battery Charger. The provided charger is extensively used to charge electric bike. The provided charger is manufactured under the vigilance of our skilled professionals using quality approved components with the aid of progressive techniques. Besides, the offered E-Bike Battery Charger can be purchased from us in several technical specifications at marginal prices.


Features:

  • Trouble free functionality
  • Longer service life
  • Energy efficient
  • Simple installation

























These battery chargers are specially designed for Yo-Bike / E-Bike taking specific requirements into consideration.

These are based on SMPS technology adopting latest Pulse Width Modulation technique.

Available ranges are as follows.

  • 48 Volts, 2.5 Amps

Other Non-standard ranges also can be made available against specific request.


Model

48V, 2.5A

Electrical Charactristics


    Input Voltage

    170 – 300V AC

    Output Voltage-Boost mode

    56V DC

    Output Voltage-Float mode

    53.6V DC

    Charging Current-Boost mode

    2.5A

    Leakage Current @ 230 V ac

    < 2mA

    Line regulation

    < 1%

    Load regulation

    < 1%

    Ripple content

    150mV p-p

    Dielectric strength:


Between Input & Output

2kV AC

Between Input & Earth

1.5kV AC

Between Output & Earth

1.5kV AC

Protections

    In rush current

    Limited by NTC Thermister

    Over voltage at Input

    Shut down above 300V AC

    Under voltage at Input

    Cutoff at 140V AC. Cut in at 160V AC

    Over voltage at Output

    59V

    Short circuit at Output

    Protected

    Overload at Output

    Protected

    Reverse polarity of Battery

    Protected

    Over voltage due to external source

    Protected

Other Features

    Indications: Charging ON, Mains ON

Mechanical

    Dimensions WxDxH

    160x90x60

    Mounting

    Table top mounting

    Approx. Weight

    500 g

Environmental


    Operating Temperature

    0 – 50 Deg.C

    Operating Relative Humidity

    0 – 80% Max.

    Vibrations

    10 – 500Hz 2G-10min. / 1 Cycle 60 min. along all three axes
