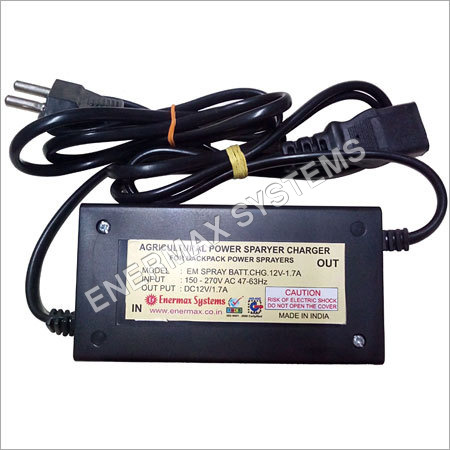

Agricultural Power Sprayer Charger

Agricultural Power Sprayer Charger
Agricultural Power Sprayer Charger
Product Code : 03
Product Description

Founded in the year 2006, we are affianced in manufacturing, exporting and supplying Agricultural Power Sprayer Charger. This charger is highly demanded in agriculture sector to charge the sprayer. With the aid of innovative techniques, our dexterous professionals use optimum quality components to manufacture this charger. Apart from this, we are offering this Agricultural Power Sprayer Charger in various technical specifications at economical prices.


Features:

  • Stable at high voltage
  • Compact design
  • Enhanced durability
  • Shock proof body

























These battery chargers are specially designed for Spray Pump Battery Charger applications taking specific requirements into consideration.

These are based on SMPS technology adopting latest Pulse Width Modulation technique.

Various available ranges are as follows.

  • 12 Volts, 0.7 Amps: Suitable for Single Battery up to 7.5 Ah capacity.
  • 12 Volts, 1.7 Amps: Suitable for Single Battery up to 26 Ah capacity.

Other Non-standard ranges like 24 Volts, (Suitable for Two Batteries in Series also can be made available against specific request.

Models

12V, 0.7A

12V,1.7A

Electrical Charactristics

    Input Voltage

    150 – 270V AC

    150 – 270V AC

    Output Voltage-Boost mode

      14.4V DC

    14.4V DC

    Output Voltage-Float mode

      13.8V DC

    13.8V DC

    Charging Current-Boost mode

    0.7A

    1.7A

    Leakage Current @ 230 V ac

      < 2mA

    < 2mA

    Line regulation

    < 1%

    < 1%

    Load regulation

    < 1%

    < 1%

    Ripple content

    150mV p-p

    150mV p-p

    Dielectric strength: Between Input & Output

    2kV AC

    2kV AC

Between Input & Earth

1.5kV AC

1.5kV AC

Between Output & Earth

1.5kV AC

1.5kV AC



Protections


    In rush current

    Limited by NTC Thermister


    Under voltage at Input

    Cutoff at 140V AC. Cut in at 160V AC


    Over voltage at Output

      15.5V

    15.5V

    Short circuit at Output

    Protected

    Protected

    Overload at Output

      Protected

    Protected

    Reverse polarity of Battery

    Protected

    Protected

Other Features

    Indications: Boost/Float mode –Dual Colour LED

Mechanical

    Type of mounting: Table Top mounting Type

    Dimensions LxWxH: 122x54x36, 122x54x36

Environmental

    Operating Temperature: 0 – 50 Deg.C

    Operating Relative Humidity: 0 – 80% Max.

    Vibrations: 0 – 500Hz 2G-10min. / 1 Cycle 60 min. along all three axes
